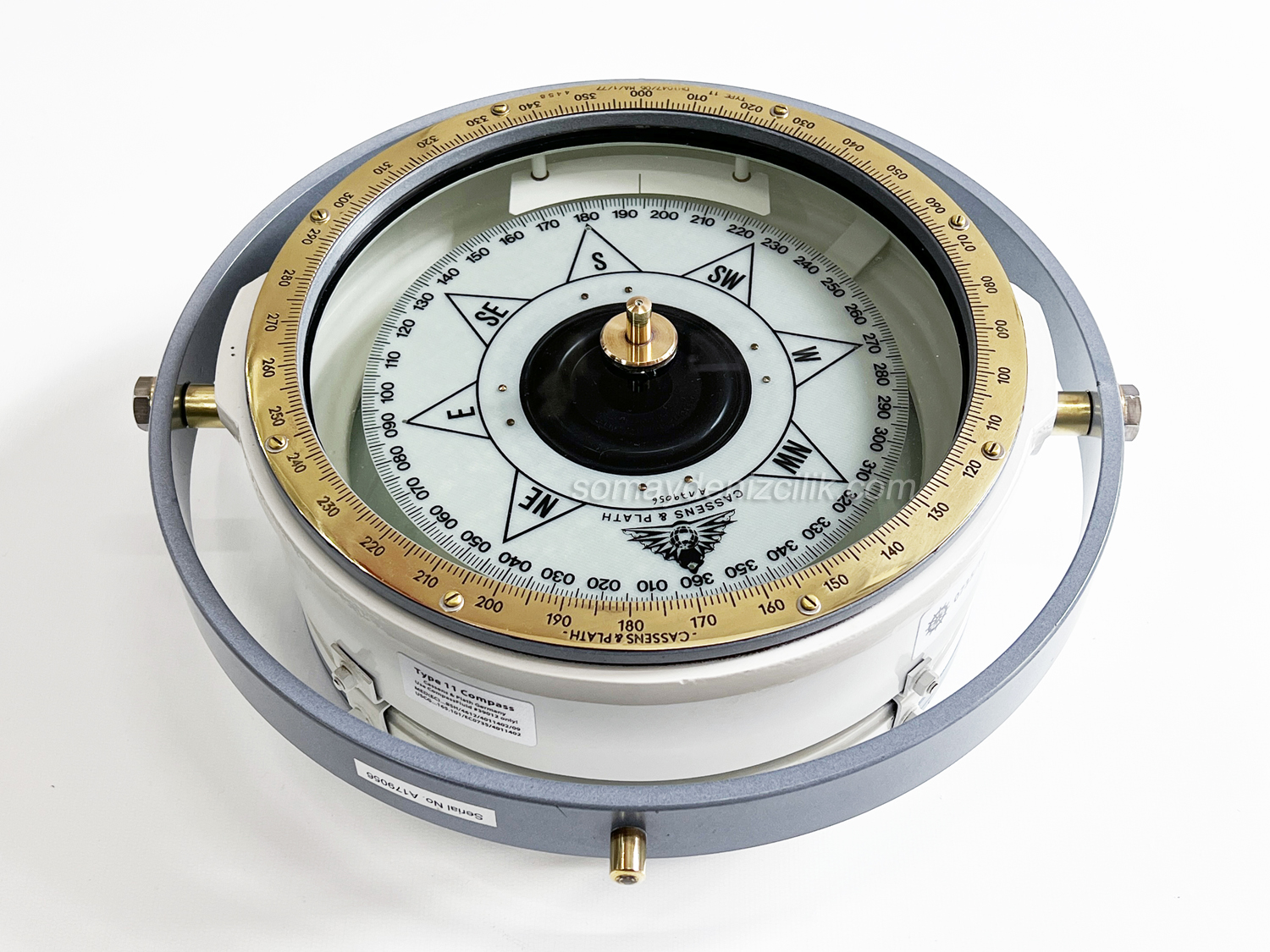

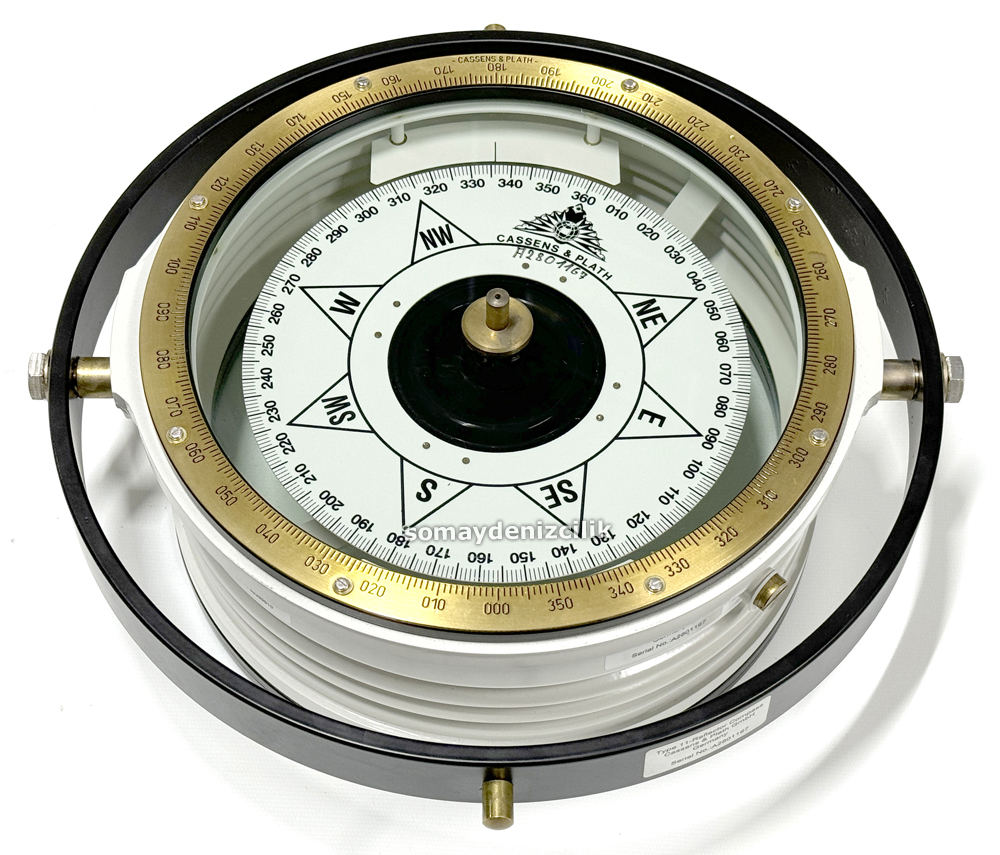

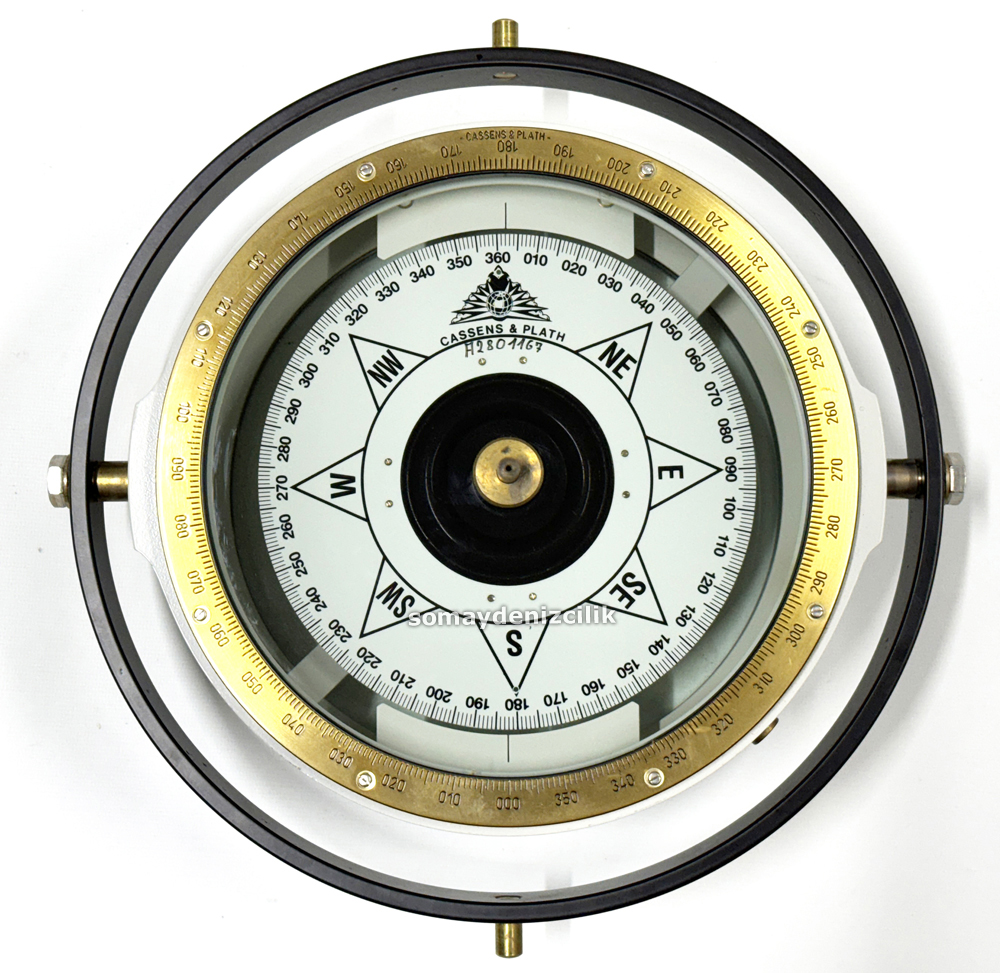

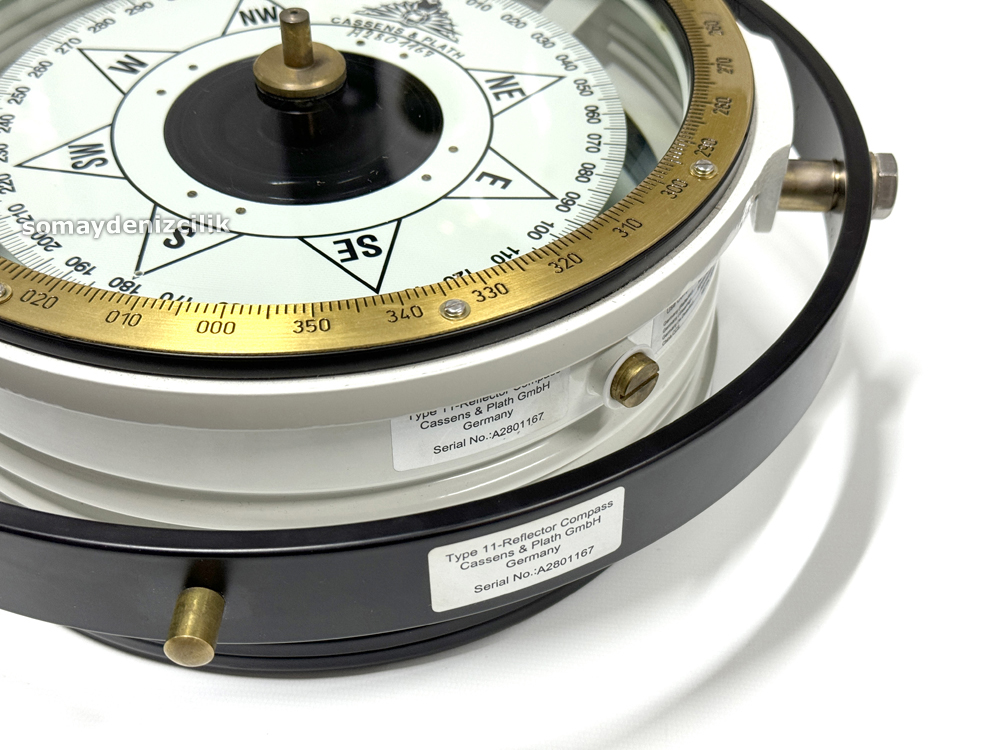

Reflector-/bearing compasses are to use in combination with reflector compass binnacles. The graduaded scale and the center pivot on the topo glass allow to take bearings. Azimuth devices are as extra available. Type 11 is to use with REFLECTA/1, Type12 with REFLECTA/2 und Type 21 with REFLECTA/3 (Refer to the relevant leaflets).
Contrary to all other compasses the upper N-marking of the card of Type 12 is above the S-marking from below. This is necessary for longer reflection tubes. Type 11 & Type 12 are of card 180 mm (71/2")
Technical Data

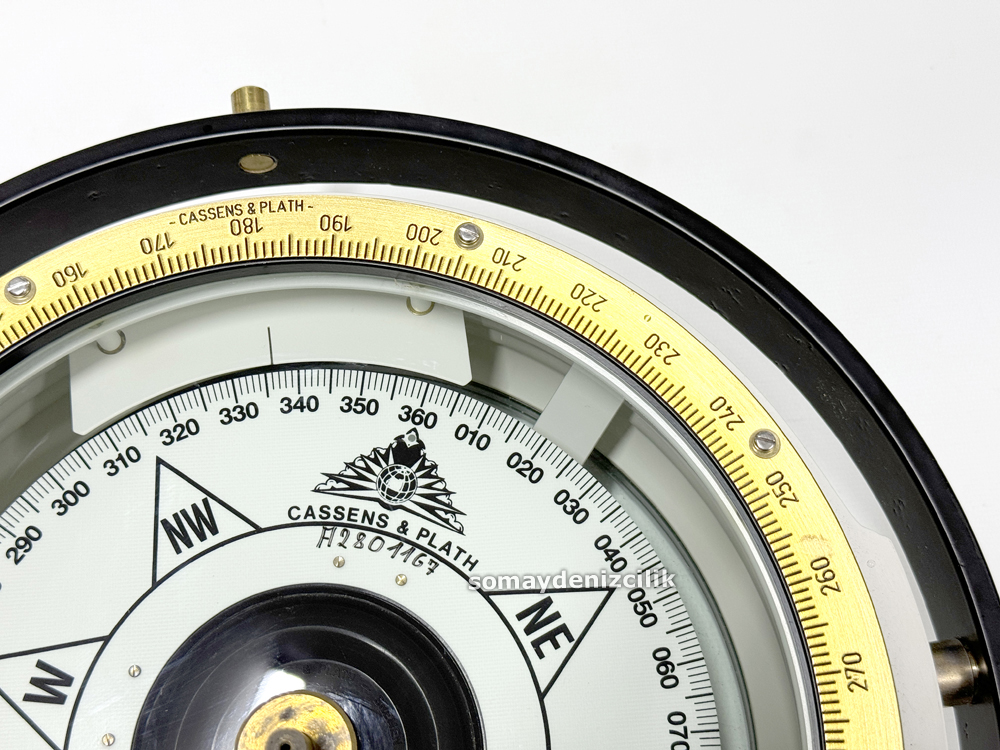

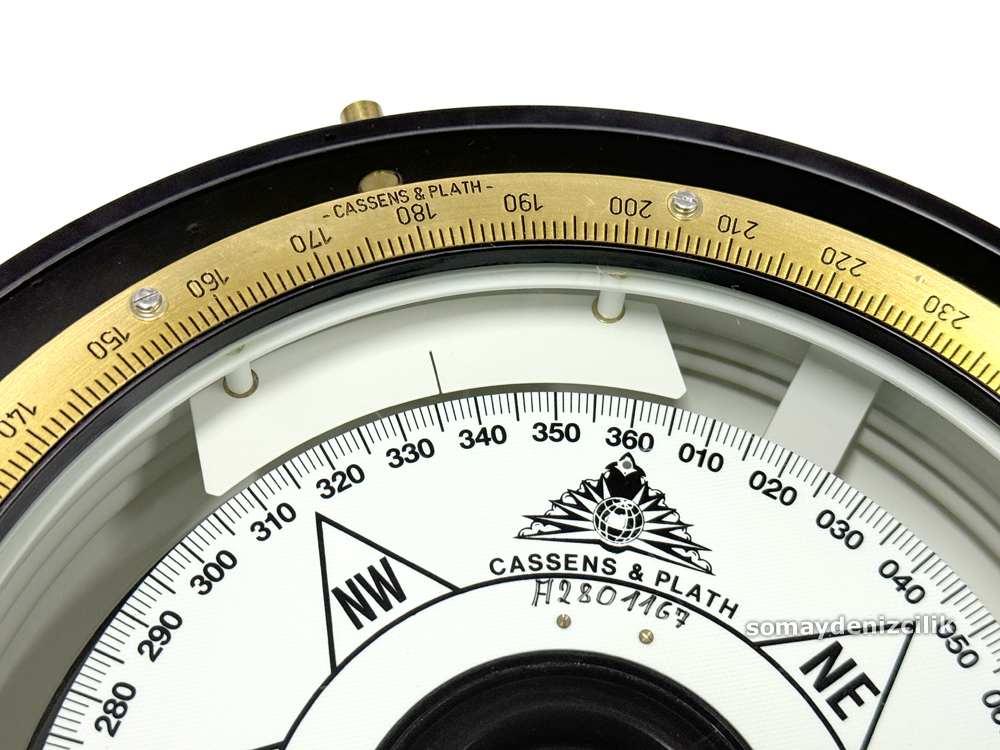

Large 3 - digit figures each 10º
Extra marked cardinal and intercardinal points
One each lubber mark in ahead and aft direction
Card division 1º
Longitudinal gimbal, inserts made of bronze
Vibration resistant expansion chamber
Order Numbers
Reflector/Bearing compasses:
Type 11. No. 32011
Accessories
- Woodem storadge box: 375x375x190mm, 2kg. No. 20800
- Steering magnifier: 3x magnification. No. 15800
- 5 - years spare parts outfit No. 10651
- D (Mu) - Corrector: With center pivot to be glued into the cover glass. No. 12200
- Azimuth device for Type 11 & Type 12 compasses in wooden box 240x75x65mm, 0.5kg. No.1400
- Azimuth device for Type 21 compass in wooden box 230x75x65 mm, 0.5 kg. No. 14100

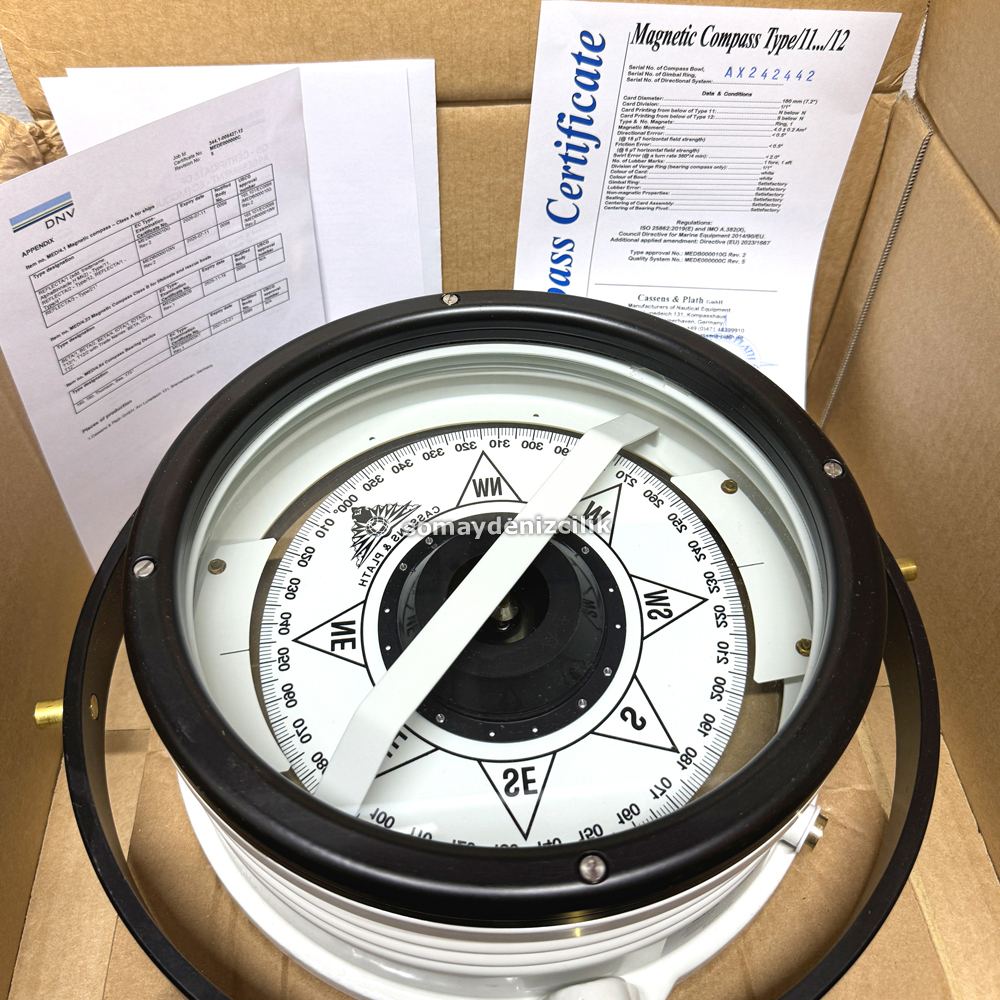

Approvals
BSH-Germany, NSI-Netherlands, NMD-Norway, Mar.Mar.-France, DERA-U.K.,-Russia, PRS-Poland, I.H.M.-Spain, ISO 2269, IMO A. 382(X)
Liquid Kod : 39012
